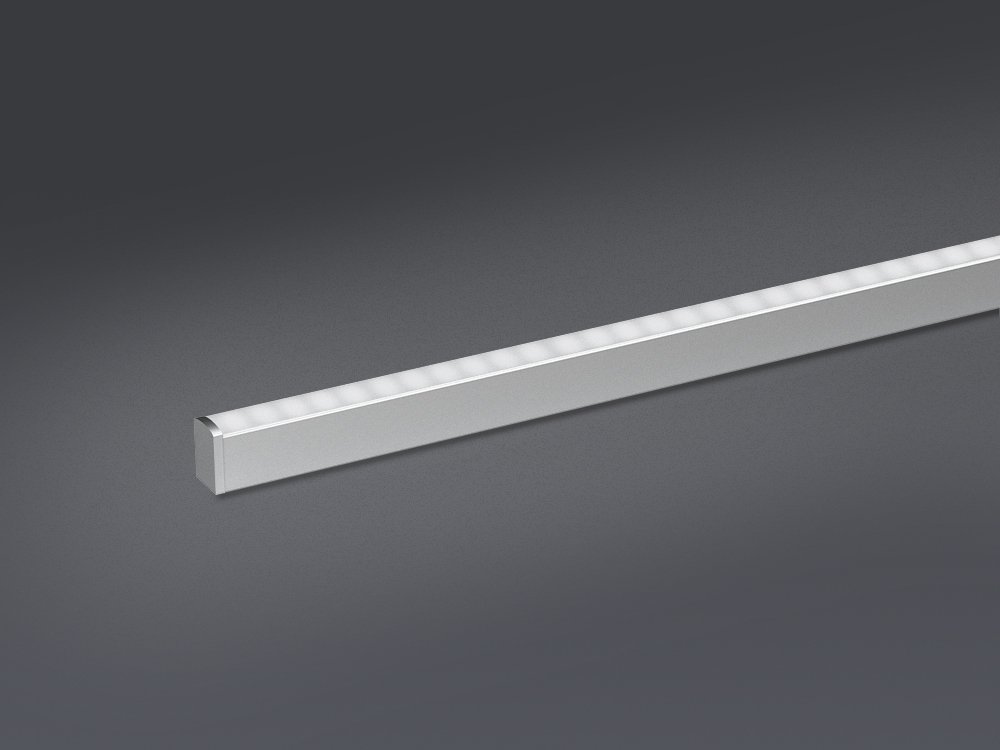

Tiny Tiny 100.s
Tiny 100.s belongs to the LED Profiles category of the Folio® Custom series and it has a defined section of 9,4 x 13,1 millimeters and length up to 3000 millimeters.
The flat polycarbonate diffuser with satin finish spreads an intense light over the entire surface.
The LED circuit used is made up of 100 LEDs per meter and it is made using high efficiency Nichia LEDs (over 100 lumen/ watt) with a guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50. Tiny 100 is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
There are two installation options available: by snap profile or magnets. The different fixing systems allow you to position the LED profile on the wall, ceiling, suspended or lay-on.
The power cable can come out from the cap, from the side or from the back of the profile.
Mounting and size
Wall max size9.4 × 13.1 × 3000 mm | 0.37 × 0.52 × 118.11 in
Suspended max size9.4 × 13.1 × 3000 mm | 0.37 × 0.52 × 118.11 in
Ceiling max size9.4 × 13.1 × 3000 mm | 0.37 × 0.52 × 118.11 in
Flat max size9.4 × 13.1 × 3000 mm | 0.37 × 0.52 × 118.11 in
Consumption: 25 W/m
Input luminous flux: 2000 lm
Output luminous flux: 518 lm/ft
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH
13,1 mm | 0.52 in
0,2 kg/m | 0.1 lbs/ft
Snap / Magnet
Environment of use
On request: Damp location (UL Listed)
Aluminum, Polycarbonate, LED
On request: RAL/ NCS/ Pantone
Nichia 757 (CRI: Ra min 90 – R9 min 50)
On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)
L90 > 60.000 hours at 50° Celsius
Blue light risk group (200mm)
2700K/ 3000K/ 3500K/ 4000K/ 5700K
On request: 2000K/ 2200K/ 2500K/ 6500K
Led profile curved
