Micro Micro 40.a
Micro 40.a belongs to the patented Folio Spot.Mate® collection.
The product is composed of an aluminum body with a diameter of 40 millimeters supported by the bezel with a standard black oxidized finish, which can be customized on request. The LED Folio circuit is composed by high efficiency Nichia diode with guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50 and by optics available with different diffusion angles. Micro 40.a is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.

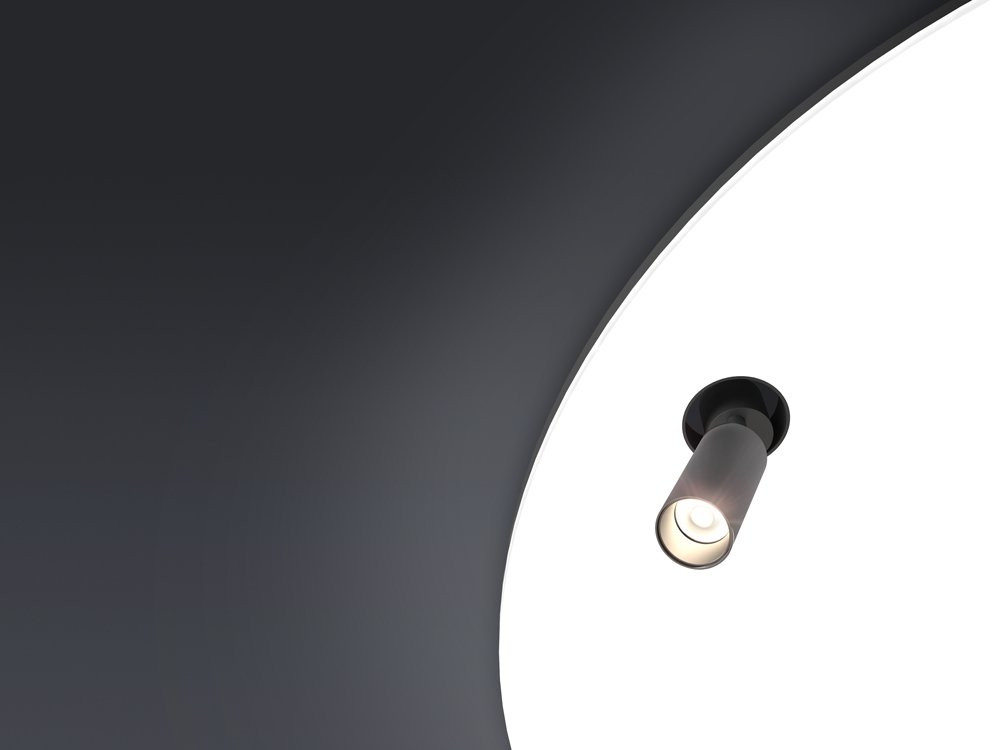

The compact Micro 40.a spot can be rotated 360° and it can be adjusted with an angle of ± 90°. Thanks to the fluid and precise joint, the light beam can be directed enriching the Folio® lighting solutions.
The Folio® Custom lighting bodies can integrate one or more accessories from the Spot.Mate® collection. The integration makes the patented system complete and performing in all its applications and it enhances the combination between diffused light and adjustable point light.
Mounting and size
Spot.Mate max size40 mm | 1.57 in
Consumption: 6.1 W @ 500 mA 6.9 W @ 250 mA 8.3 W @ 300 mA
Output luminous flux: 650 lm 425 lm 495 lm
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH
137 mm | 5.39 in
0,35 kg | 0.8 lbs
Environment of use
On request: Damp location (UL Listed)
Aluminum, Lens, LED
Ox silver/ white/ black
On request: RAL/ NCS/ Pantone
Nichia Ole Soraa
About 50.000 hours
2700K/ 3000K/ 3500K/ 4000K
On request: 2000K/ 2200K/ 2500K/ 4000K/ 5000K
