Folio Zero Zero 100 + Folio

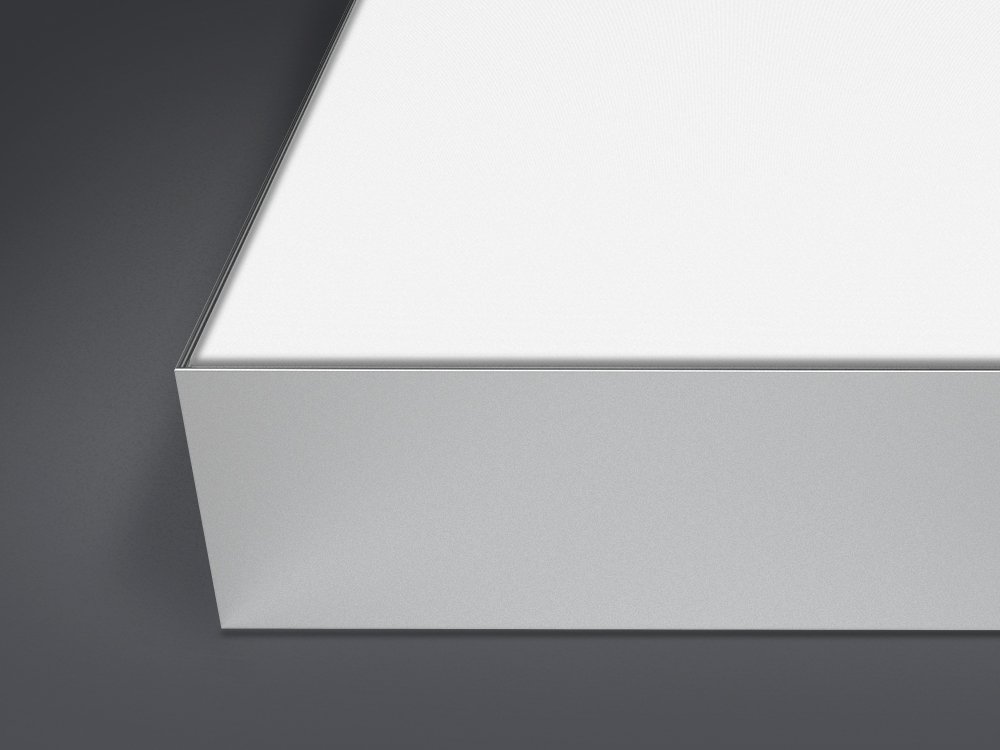

Zero 100 + Folio® belongs to the Folio® Zero family and is characterized by a thickness of 100 millimeters and a white diffuser fabric.
The Zero + Folio® lighting system is custom made and it is possible to customize its size, shape and graphics, as well as make special processing on it, such as through holes with round or square section.
The product is composed of the Zero aluminum frame, which can be shaped to obtain rounded corners or create three-dimensional installations, inside which the Folio® Base 1 panel is placed with a transparent methacrylate plate (“source”) laser processed following the engraving algorithm customized Folio® which allows to obtain a 97% guaranteed light homogeneity. Thanks to the PVC gasket sewn on the perimeter, the flexible fabric, also available with acoustic properties, is tensioned on the aluminum profile, diffusing the light in a natural and homogeneous way, covering large surfaces without visible joints.
The Zero 100 + Folio® system can be installed suspended or on the ceiling (also available with wall fixing), covering surfaces up to 3000 x 20000 millimeters.
In addition to the finishes of the diffuser and the aluminum frame, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Zero 100 + Folio® can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.
Mounting and size
Wall max size20000 × 3000 mm | 787.40 × 118.11 in
Suspended max size10000 × 3000 mm | 393.70 × 118.11 in
Ceiling max size10000 × 3000 mm | 393.70 × 118.11 in
Consumption: 22 W/m
Input luminous flux: 2000 lm
Output luminous flux: White Fabric < 45% than the luminous flux input
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH
100 mm | 3.94 in
18 kg/m² | 3.7 lbs/ft²
Environment of use
On request: Damp location (UL Listed)
On request: IP54
Aluminum, Methacrylate, Stretch Fabric, LED
Ox silver/ white/ black
On request: RAL/ NCS/ Pantone
White stretch fabric/ printed stretch fabric
On request: white acoustic stretch fabric/ printed acoustic stretch fabric
Nichia 757 (CRI: Ra min 90 – R9 min 50)
On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)
L90 > 60.000 hours at 50° Celsius
Blue light risk group (200mm)
2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW
Zero drilled circular
Zero drilled square
