Folio Visual Zero 55 Grid Visual

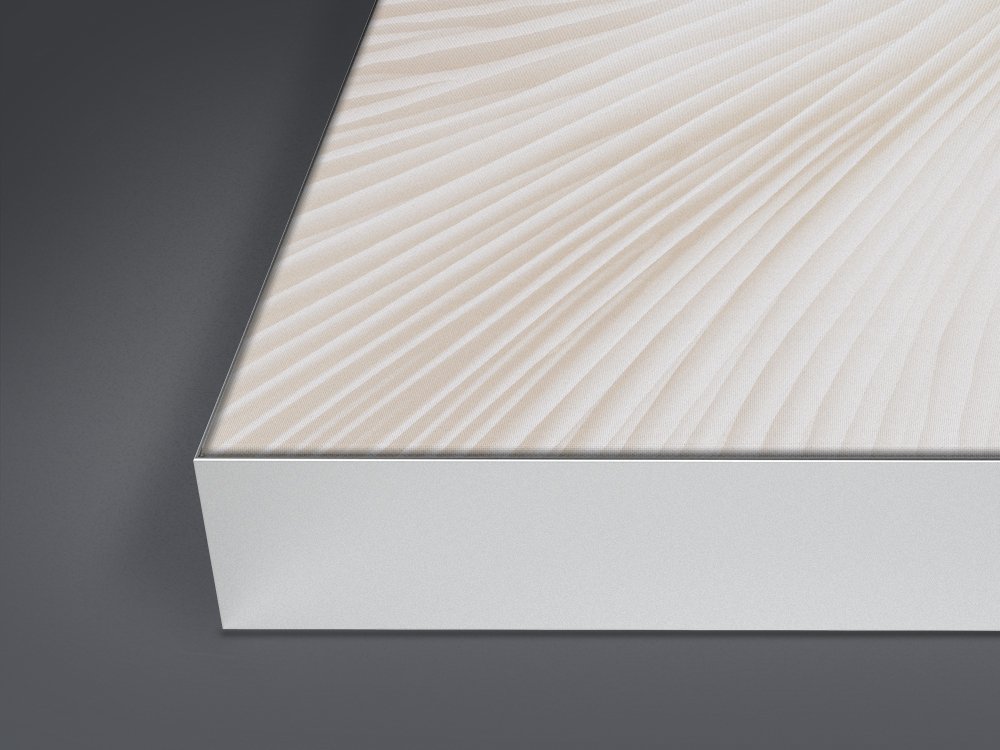

Zero 55 Grid Visual belongs to the Folio® Visual family and is characterized by a thickness of 55 millimeters and by customizable graphics printed at high resolution on the diffuser fabric.
The Zero Grid lighting system is custom made and it is possible to customize its size, shape and graphics, as well as make special processing on it, such as through holes with round or square section.
The product is composed by the Zero aluminum frame, which can be shaped to obtain rounded corners or create three-dimensional installations. Inside the Zero frame there is the Alucobond® with applied the grid of LED modules with special optics (with opening up to 180 °) which guarantees a homogeneous light emission and a customizable luminous flux. Thanks to the PVC gasket sewn on the perimeter, the flexible white or printed fabric, also available with acoustic properties, is tensioned on the aluminum profile and it diffuse the light in a natural and homogeneous way, covering large surfaces without visible joints.
The Zero 55 Grid system can be installed on the wall, on the ceiling and suspended and it can cover surfaces up to 3000 x 2000 millimeters.
In addition to the finishes of the diffuser and the aluminum frame, there are also customizable elements of the product like CCT, consumption, luminous flux and IP rating.
Nichia LEDs used for Zero Grid products are highly energy efficient (150 lumen/ watt) with CRI Ra (R1~ R8) 90. The light system is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Zero 55 Grid Visual can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.

Mounting and size
  • Wall

    Wall max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • Suspended

    Suspended max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • Ceiling

    Ceiling max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • LED input
    24V DC

    Static CCT
    Consumption: 65 W/m²
    Input luminous flux: 10000 lm
    Output luminous flux: White Fabric < 45% than the luminous flux input + x% according to the type of printing

    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    55 mm | 2.17 in

    8 kg/m² | 1.6 lbs/ft²

    Environment of use
    On request: Damp location (UL Listed)

    IP rating
    On request: IP54

  • Materials
    Aluminum, Stretch Fabric, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    White stretch fabric/ printed stretch fabric
    On request: white acoustic stretch fabric/ printed acoustic stretch fabric

  • LED type
    Nichia (CRI: Ra = 90)

    LED lifespan
    About 50.000 hours

    Blue light risk group (200mm)

    3000K/ 4000K/ 5000K/ 6500K/ Tunable White/ RGB/ RGBW
    On request: 2700K

    3 Step

Available processes

Zero curved

Zero drilled circular

Zero drilled square

Zero shaped

Available certifications
