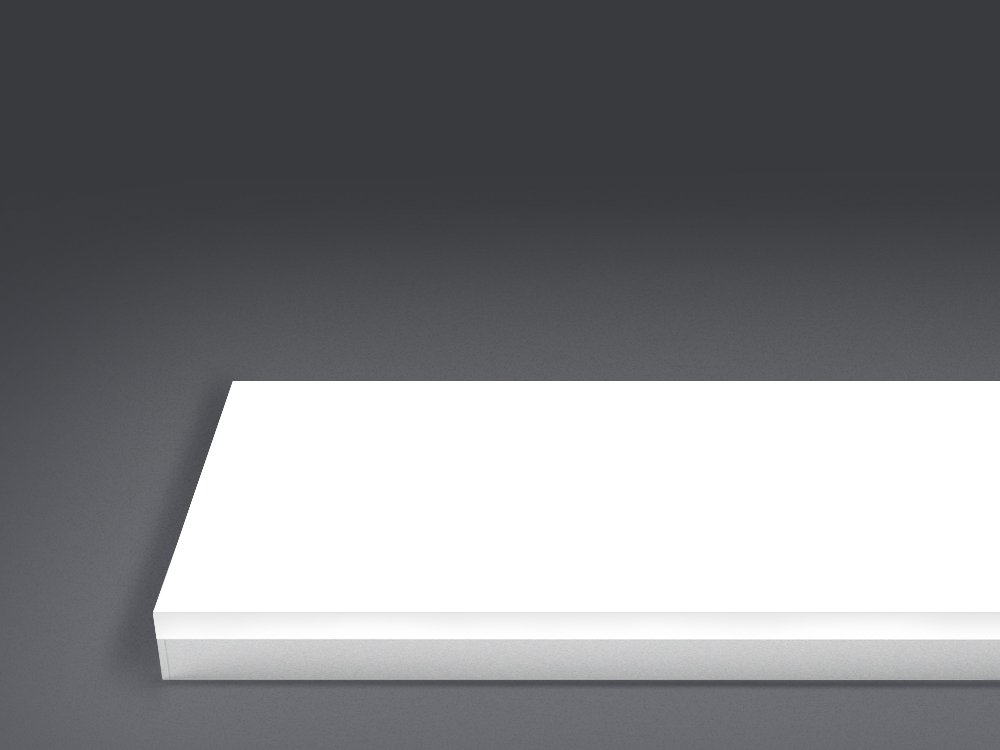

Folio Rigo Rigo Line 150
Rigo Line 150 belongs to the Folio® Rigo family and is characterized by linear geometry with a defined width of 150 millimeters and a length between 150 and 3000 millimeters.
The panel is made to measure and it is possible to customize its size, shape and thickness, as well as make special processing on it.
The product is made up of the external protection in extrus aluminum that favors rigidity and heat dissipation and the internal transparent methacrylate plate ("source") laser processed following the Folio® custom engraving algorithm which allows to obtain a guaranteed light homogeneity of 97%. The opal diffuser with a thickness of 10 millimeters is available with a matte or glossy finish and protects the LED circuit as well as the "source" plate without hindering the light transmission, improving the aesthetics of the panel, both when switched off and on, thanks to the effect "full light" with bright edges. The components are fixed together with micro-screws placed on the rear perimeter of the panel; the tips of the screws are visible on the bright side of the panel.
The Rigo Line panels can be installed on the wall, on the ceiling, suspended or lay-on installation, keeping intact the lighting qualities and minimal design.
In addition to the finishes of the diffuser and the aluminum body, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Folio® Rigo Line 150 can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.
Mounting and size
Wall max size150 × 3000 mm | 5.91 × 118.11 in
Suspended max size150 × 3000 mm | 5.91 × 118.11 in
Flat max size150 × 3000 mm | 5.91 × 118.11 in
Ceiling max size150 × 3000 mm | 5.91 × 118.11 in
Consumption: 22 W/m
Input luminous flux: 2000 lm
Output luminous flux: 602 lm/ft (flux with two LED sides)
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH
24 mm | 0.95 in
4 kg/m | 2.7 lbs/ft
Environment of use
On request: Damp location (UL Listed)
On request: IP54
Aluminum, Methacrylate, LED
Ox silver/ white/ black
On request: RAL/ NCS/ Pantone
Matte opal/ glossy opal
On request: Opal Milling / Opal Sculpture/ printed opal/ opal with printed film
Nichia 757 (CRI: Ra min 90 – R9 min 50)
On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)
L90 > 60.000 hours at 50° Celsius
Blue light risk group (200mm)
2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW
Opal drilled circular
Opal drilled square
