Folio Opal Opal Cloud

Opal Cloud belongs to the Folio® Opal family and is characterized by a thickness of only 16 millimeters and double-sided opal diffusers.
The panel is made to measure and it is possible to customize its size, shape and thickness, as well as make special processing on it.

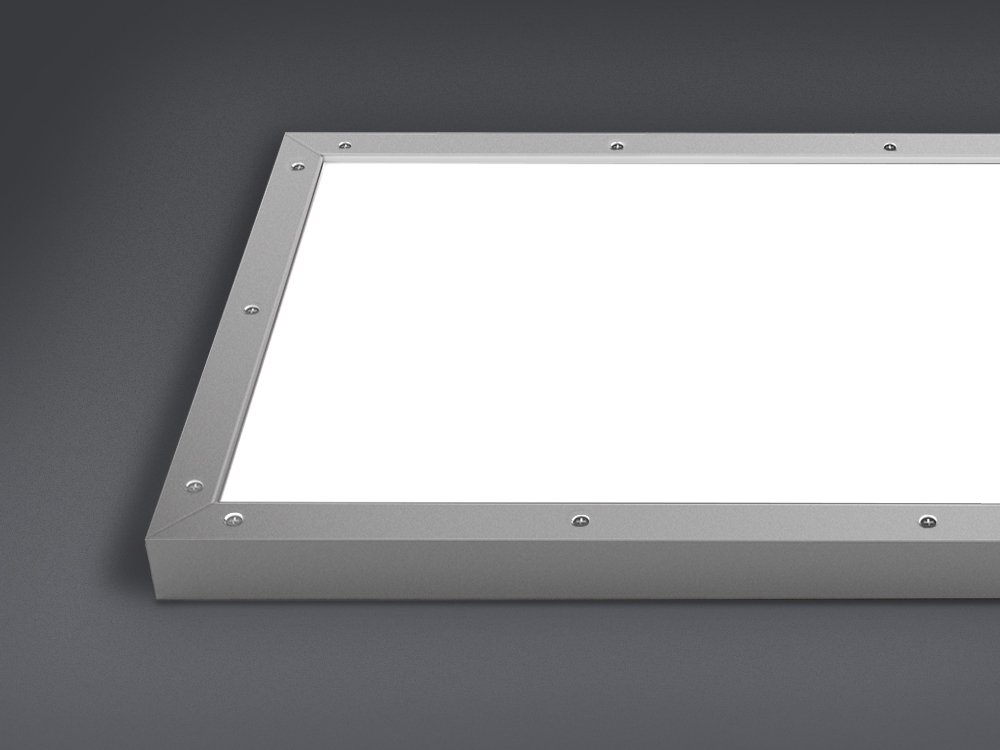

The product is composed by the "C" shaped aluminum profile which surrounds the perimeter of the panel containing the opal diffusers and the transparent methacrylate sheet ("source") laser processed following the Folio® custom engraving algorithm which allows to obtain a '' guaranteed light homogeneity of 97%. The opal diffusers with a 3 mm thickness, placed on both sides, are available with a matt or glossy finish and they protect the LED circuit as well as the "source" plate without hindering the light transmission, improving the aesthetics of the panel, both when switched off and when turned on.
The size of the Opal Cloud panels changes according to the type of installation required (wall, ceiling, suspended or lay-on installation), up to a maximum of 3000 x 2000 millimeters.
In addition to the finishes of the diffuser and the aluminum “C” profile, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Folio® Opal Cloud can be implemented with lighting accessories such as Folio Spot.Mate® point light components.

Mounting and size
  • Wall

    Wall max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • Suspended

    Suspended max size

    3000 × 1250 mm | 118.11 × 49.21 in
  • Ceiling

    Ceiling max size

    3000 × 1250 mm | 118.11 × 49.21 in
  • Flat

    Flat max size

    3000 × 2000 mm | 118.11 × 78.74 in
  • LED input
    24V DC

    Static CCT
    Consumption: 22 W/m
    Input luminous flux: 2000 lm
    Output luminous flux: < 30% than the input luminous flux equally divided on both sides

    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    16 mm | 0.63 in

    16 kg/m² | 3.3 lbs/ft²

    Environment of use
    On request: Damp location (UL Listed)

    IP rating
    On request: IP54

  • Materials
    Aluminum, Methacrylate, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    Matte opal/ glossy opal
    On request: Opal Milling / Opal Sculpture/ printed opal/ opal with printed film

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)

    2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
    On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW

    3 Step

Available processes

Opal curved

Opal drilled circular

Opal drilled square

Opal shaped

Available certifications
Lighting accessories
