Folio Materials Folio Milling V

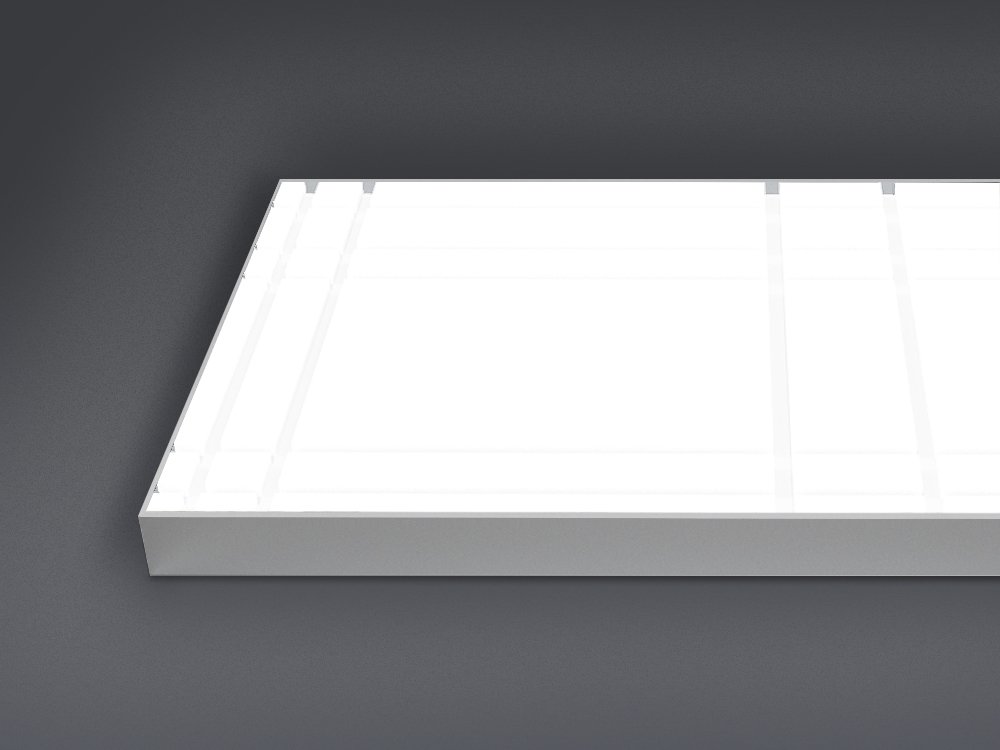

Folio® Milling V belongs to the Folio® Materials family and is characterized by its reduced thickness and milled opal diffuser.
The panel is made to measure and it is possible to customize its size, shape, milled pattern and thickness, as well as make special processing on it.
The product is made up of the external aluminum protective shell that favors rigidity and heat dissipation and the internal transparent methacrylate plate ("source") laser processed following the Folio® custom engraving algorithm which allows to obtain a guaranteed light homogeneity of 97%. The opal diffuser with a thickness of 10 millimeters, milled with custom graphics, is available with a matte or glossy finish and it protects the LED circuit as well as the "source" plate without hindering light transmission, improving the aesthetics of the panel, both when switched off that from lit, thanks to the “frameless” effect given by the absence of frames. The components are fixed together with micro-screws placed on the rear perimeter of the panel; the tips of the screws are visible on the bright side of the panel.
The size of the Folio® Milling V panels changes according to the type of installation required (wall, ceiling, suspended or lay-on installation), up to a maximum of 3000 x 2000 millimeters.
In addition to the finishes of the diffuser and the aluminum body, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Folio® Milling V can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.
Mounting and size
Wall max size3000 × 2000 mm | 118.11 × 78.74 in
Suspended max size3000 × 1000 mm | 118.11 × 39.37 in
Ceiling max size3000 × 1000 mm | 118.11 × 39.37 in
Flat max size3000 × 2000 mm | 118.11 × 78.74 in
Consumption: 22 W/m
Input luminous flux: 2000 lm
Output luminous flux: < 45% than the luminous flux input
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH
20 mm | 0.78 in
24 kg/m² | 4.9 lbs/ft²
Environment of use
On request: Damp location (UL Listed)
On request: IP54
Aluminum, Methacrylate, LED
Ox silver/ white/ black
On request: RAL/ NCS/ Pantone
Matte Opal Milling/ glossy Opal Milling
Nichia 757 (CRI: Ra min 90 – R9 min 50)
On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)
L90 > 60.000 hours at 50° Celsius
Blue light risk group (200mm)
2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW
Opal drilled circular
Opal drilled square
