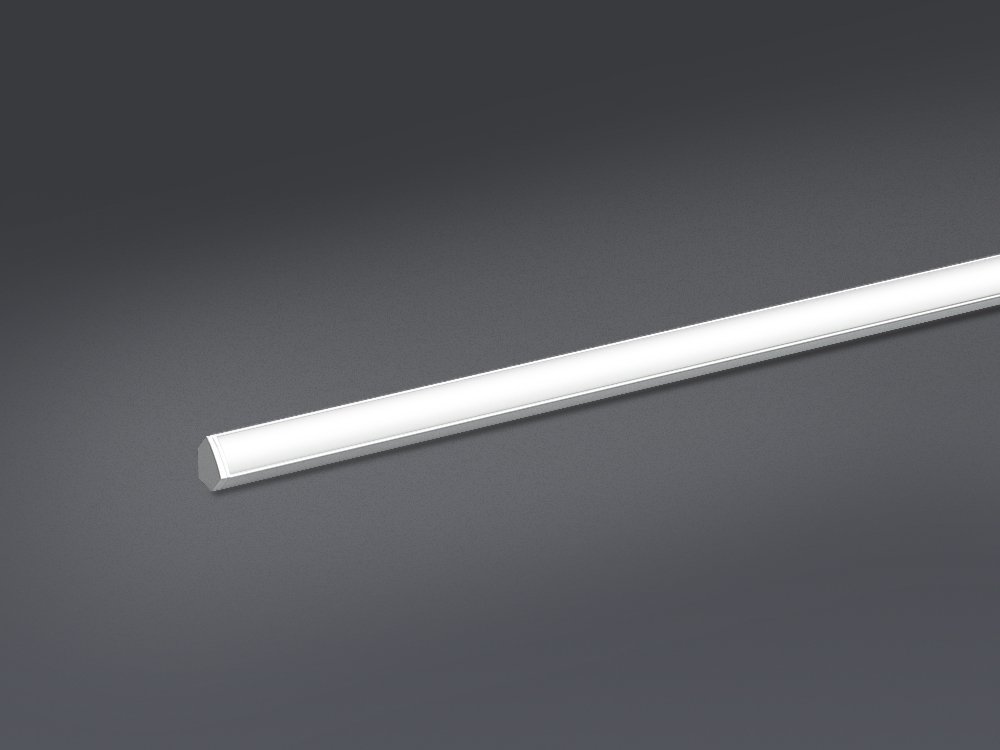

Tiny 45 Tiny 45 180.o

Tiny 45 180.o belongs to the LED Profiles category of the Folio® Custom series and it has a defined section of 11,1 x 11,4 millimeters and length up to 3000 millimeters.
The LED profiles offer great compositional freedom and are suitable for both small and large design applications.
The profile provides for the 45° installation in order to direct the light beam and it is perfect in displays or shelves application.
The flat polycarbonate diffuser with opal finish spreads an intense light over the entire surface.
The LED circuit used is made up of 180 LEDs per meter and it is made using high efficiency Nichia LEDs (over 100 lumen/ watt) with a guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50. Tiny 45 180 is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
There are two installation options available: by glue/ silicone or magnets. The different fixing systems allow you to position the LED profile on the wall, ceiling, suspended or lay-on.
The power cable can come out from the cap or from the side of the profile.

Mounting and size
  • Wall

    Wall max size

    11.1 × 11.4 × 3000 mm | 0.44 × 0.45 × 118.11 in
  • Ceiling

    Ceiling max size

    11.1 × 11.4 × 3000 mm | 0.44 × 0.45 × 118.11 in
  • Flat

    Flat max size

    11.1 × 11.4 × 3000 mm | 0.44 × 0.45 × 118.11 in

  • LED input
    24V DC

    Static CCT
    Consumption: 21.5 W/m
    Input luminous flux: 2000 lm
    Output luminous flux: 305 lm/ft

    Dimmability
    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    Thickness
    11,4 mm | 0.45 in

    Weight
    0,15 kg/m | 0.1 lbs/ft

    Fixing
    Magnet / Silicone/Glue

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40

  • Materials
    Aluminum, Polycarbonate, LED

    Aluminum finishes
    Ox silver
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    Opal

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)
    EXEMPT UNLIMITED

    CCT
    2700K/ 3000K/ 3500K/ 4000K/ 5700K
    On request: 2000K/ 2200K/ 2500K/ 6500K

    MacAdam
    3 Step
