Stocky Stocky 25 Flat 100.s

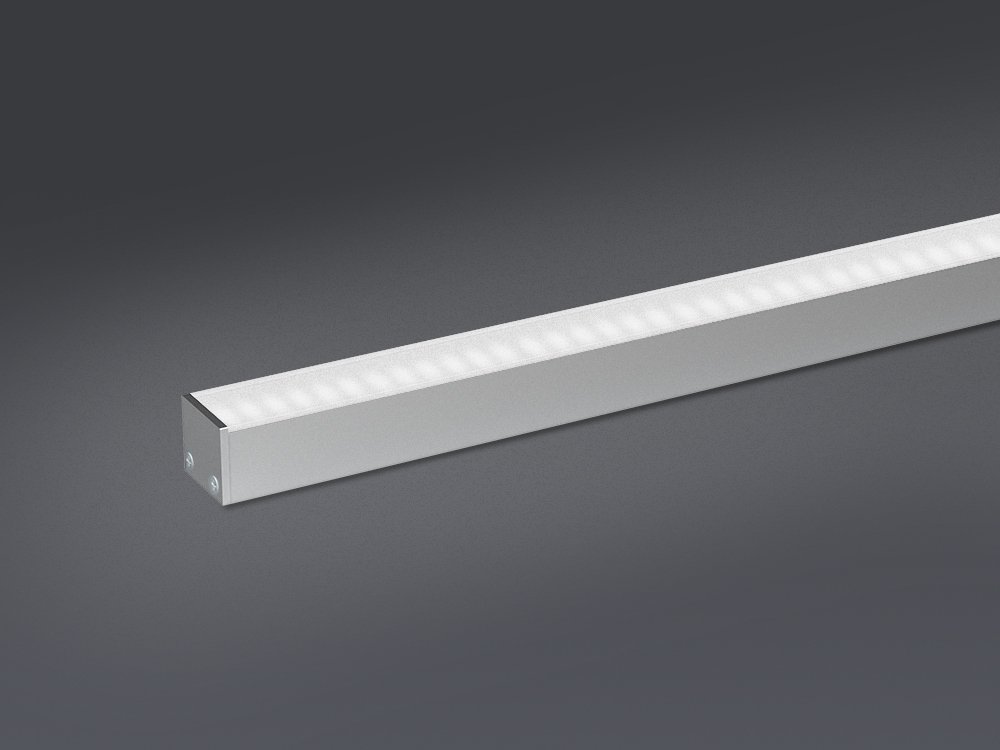

Stocky 25 Flat 100.s belongs to the LED Profiles category of the Folio® Custom series and it has a defined section of 21 x 19,2 millimeters and length up to 3000 millimeters.
The LED profiles offer great compositional freedom and are suitable for both small and large design applications.
The flat polycarbonate diffuser with double-satin finish spreads an intense light over the entire surface.
The light beam is directed thanks to the internal aluminum profile which allows the light to be projected at a 25° angle.
The LED circuit used is made up of 100 LEDs per meter and it is made using high efficiency Nichia LEDs (over 100 lumen/ watt) with a guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50. Stocky 25 Flat 100 is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
There are two installation options available: by snap profile or magnets. The different fixing systems allow you to position the LED profile on the wall, ceiling, suspended or lay-on.
The power cable can come out from the cap, from the side or from the back of the profile.

Mounting and size
  • Wall

    Wall max size

    21 × 19.2 × 3000 mm | 0.83 × 0.76 × 118.11 in
  • Suspended

    Suspended max size

    21 × 19.2 × 3000 mm | 0.83 × 0.76 × 118.11 in
  • Ceiling

    Ceiling max size

    21 × 19.2 × 3000 mm | 0.83 × 0.76 × 118.11 in
  • Flat

    Flat max size

    21 × 19.2 × 3000 mm | 0.83 × 0.76 × 118.11 in

  • LED input
    24V DC

    Static CCT
    Consumption: 25 W/m
    Input luminous flux: 2000 lm
    Output luminous flux: 427 lm/ft

    Dimmability
    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    Thickness
    19,2 mm | 0.76 in

    Weight
    0,45 kg/m | 0.3 lbs/ft

    Fixing
    Snap / Magnet

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40
    On request: IP54

  • Materials
    Aluminum, Polycarbonate, LED

    Aluminum finishes
    Ox silver
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    Double-satin

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)
    EXEMPT UNLIMITED

    CCT
    2700K/ 3000K/ 3500K/ 4000K/ 5700K
    On request: 2000K/ 2200K/ 2500K/ 6500K

    MacAdam
    3 Step

Available processes

Led profile curved

Available certifications
