Folio Visual Zero 80 Grid Visual

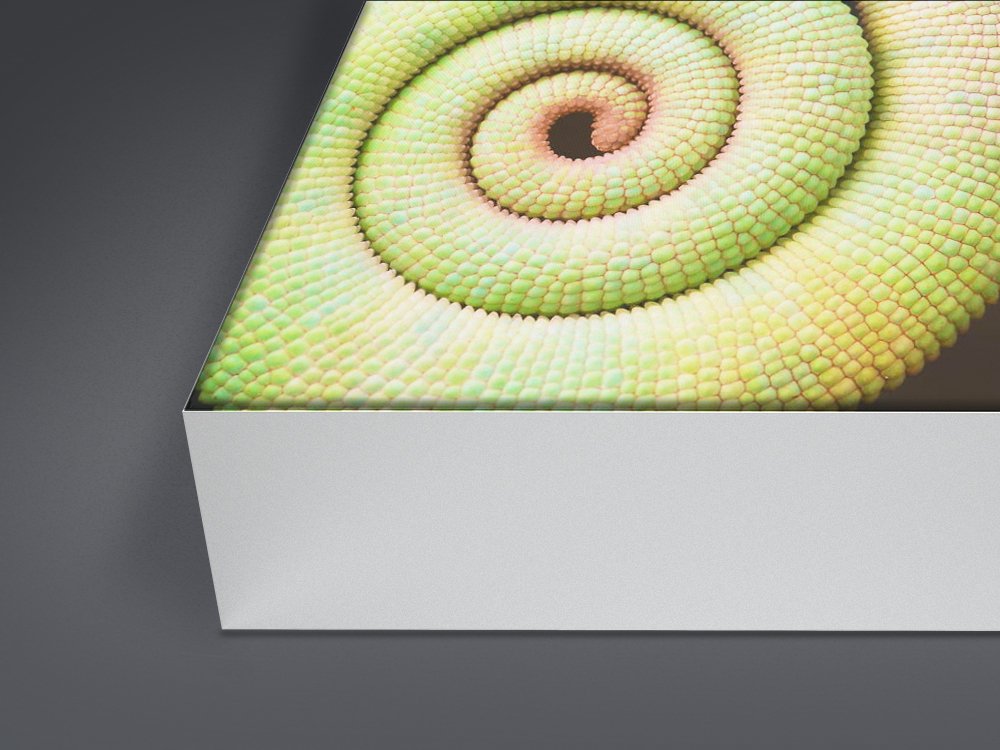

Zero 80 Grid Visual belongs to the Folio® Visual family and is characterized by a thickness of 80 millimeters and by customizable graphics printed at high resolution on the diffuser fabric.
The Zero Grid lighting system is custom made and it is possible to customize its size, shape and graphics, as well as make special processing on it, such as through holes with round or square section.
The product is composed by the Zero aluminum frame, which can be shaped to obtain rounded corners or create three-dimensional installations. Inside the Zero frame there is the Alucobond® with applied the grid of LED modules with special optics (with opening up to 180 °) which guarantees a homogeneous light emission and a customizable luminous flux. Thanks to the PVC gasket sewn on the perimeter, the flexible white or printed fabric, also available with acoustic properties, is tensioned on the aluminum profile and it diffuse the light in a natural and homogeneous way, covering large surfaces without visible joints.
The Zero 80 Grid system can be installed on the wall, suspended and on the ceiling covering surfaces up to 4950 x 20000 millimeters.
In addition to the finishes of the diffuser and the aluminum frame, there are also customizable elements of the product like CCT, consumption, luminous flux and IP rating.
Nichia LEDs used for Folio® products are highly energy efficient (150 lumen/ watt) with CRI Ra (R1~ R8) 90. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Zero 80 Grid Visual can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.

Mounting and size

Wall max size
20000 × 4950 mm | 787.40 × 194.88 in
Suspended max size
10000 × 4950 mm | 393.70 × 194.88 in
Ceiling max size
10000 × 4950 mm | 393.70 × 194.88 in

General info

LED input
24V DC

Static CCT
Consumption: 40 W/m²
Input luminous flux: 6350 lm
Output luminous flux: White Fabric < 45% than the luminous flux input + x% according to the type of printing

Dimmability
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

Thickness
80 mm | 3.15 in

Weight
10 kg/m² | 2.0 lbs/ft²

Environment of use
Indoor
On request: Damp location (UL Listed)

IP rating
IP40
On request: IP54
Physical info

Materials
Aluminum, Stretch Fabric, LED

Aluminum finishes
Ox silver/ white/ black
On request: RAL/ NCS/ Pantone

Diffuser finishes
White stretch fabric/ printed stretch fabric
On request: white acoustic stretch fabric/ printed acoustic stretch fabric
Light info

LED type
Nichia (CRI: Ra = 90)

LED lifespan
About 50.000 hours

Blue light risk group (200mm)
EXEMPT UNLIMITED

CCT
3000K/ 4000K/ 5000K/ 6500K/ Tunable White/ RGB/ RGBW
On request: 2700K

MacAdam
3 Step
