Folio Visual Zero 55 + Folio Visual

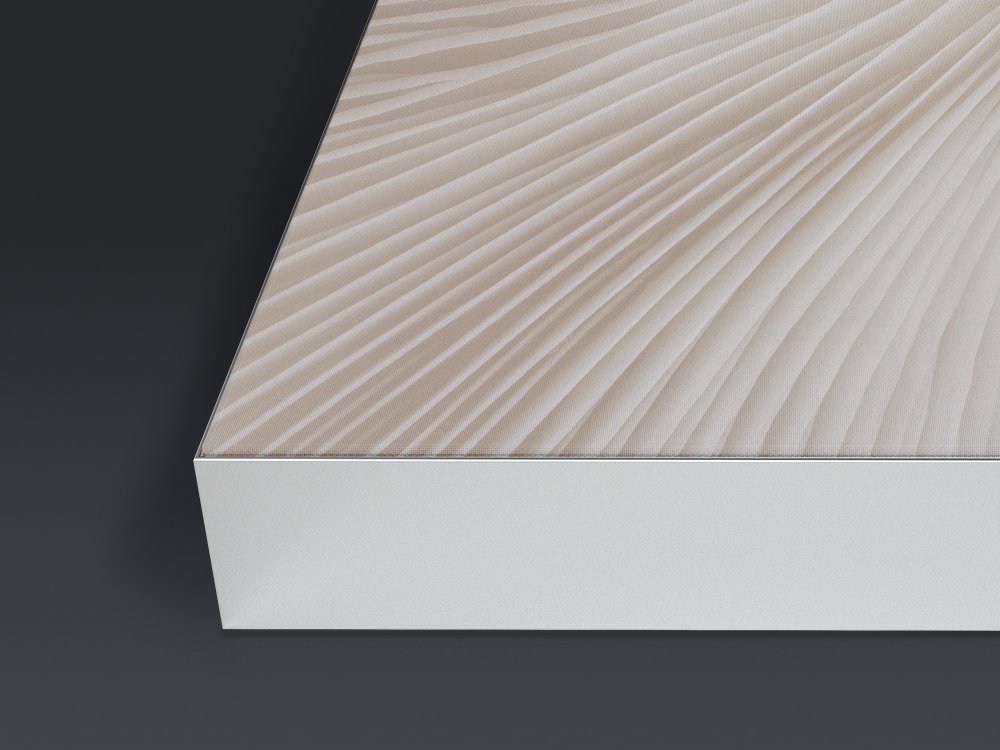

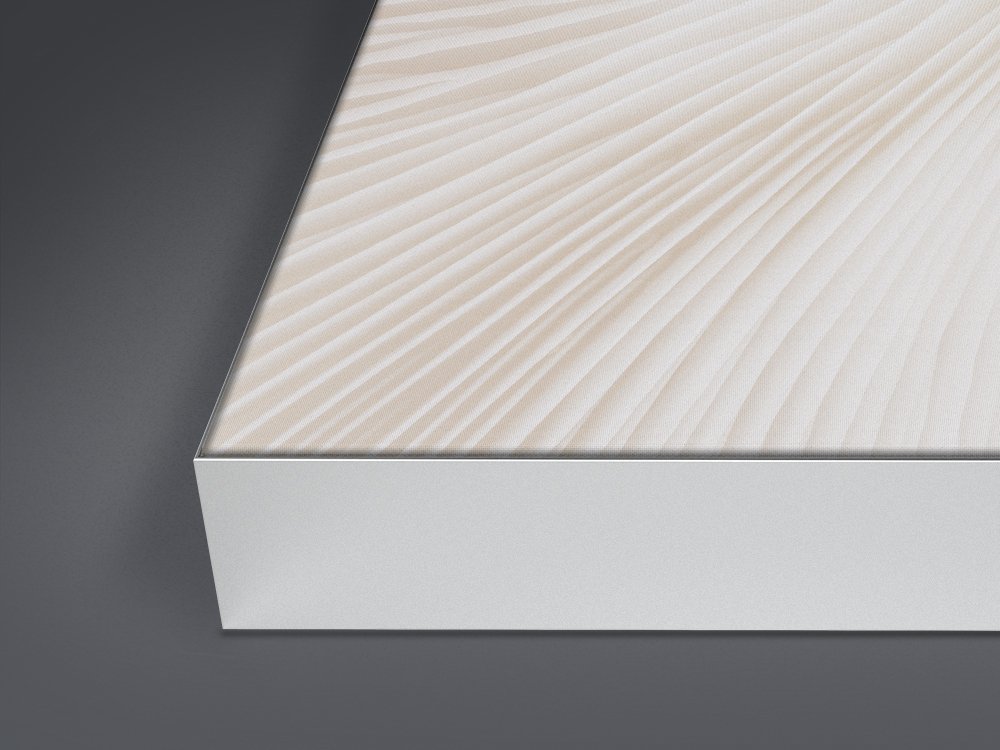

Zero 55 + Folio® Visual belongs to the Folio® Visual family and is characterized by a thickness of 55 millimeters and by customizable graphics printed at high resolution on the diffuser fabric.

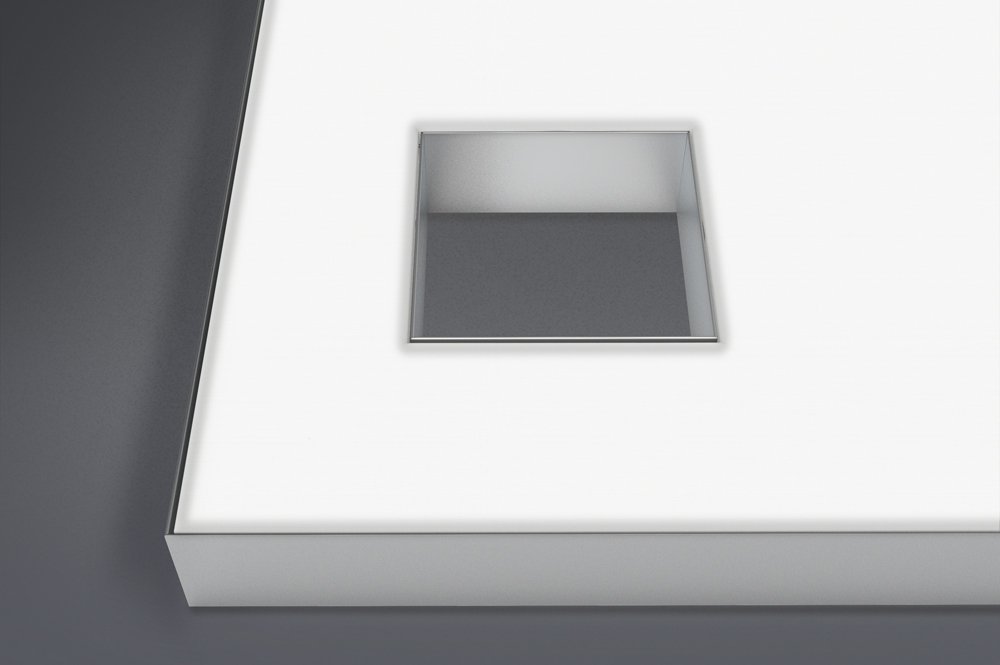

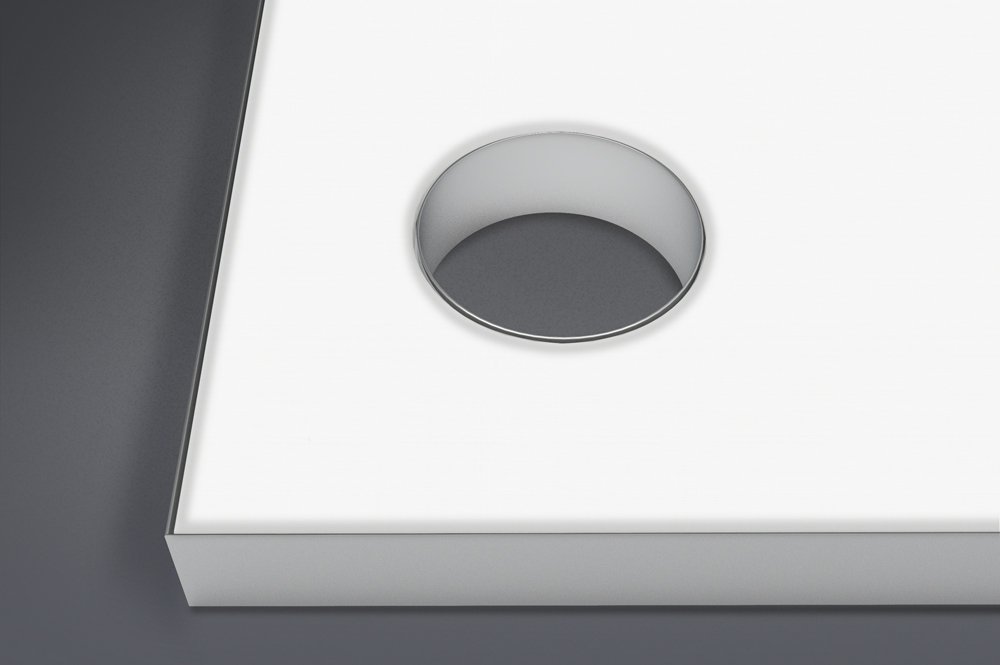

The Zero + Folio® lighting system is custom made and it is possible to customize its size, shape and graphics, as well as make special processing on it, such as through holes with round or square section.

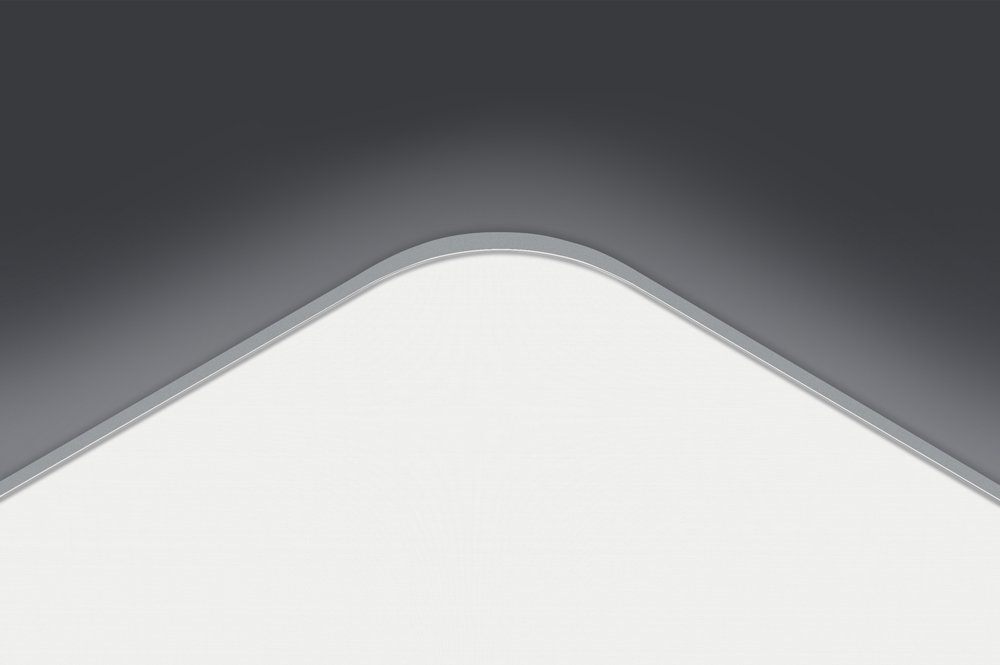

The product is composed of the Zero aluminum frame, which can be shaped to obtain rounded corners or create three-dimensional installations, inside which the Folio® Base 1 panel is positioned with a transparent methacrylate plate (“source”) laser processed following the engraving algorithm customized Folio® which allows to obtain a guaranteed a 97% of light homogeneity. Thanks to the PVC gasket sewn on the perimeter, the flexible white or printed fabric, also available with acoustic properties, is tensioned on the aluminum profile and it diffusing the light in a natural and homogeneous way, covering large surfaces without visible joints.
The Zero 55 system can be installed on the wall, on the ceiling and suspended and it can cover surfaces up to 3000 x 10000 millimeters.
In addition to the finishes of the diffuser and the aluminum frame, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Zero 55 + Folio® Visual can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.

Mounting and size

Wall max size
10000 × 3000 mm | 393.70 × 118.11 in
Suspended max size
3000 × 2000 mm | 118.11 × 78.74 in
Ceiling max size
3000 × 2000 mm | 118.11 × 78.74 in

General info

LED input
24V DC

Static CCT
Consumption: 22 W/m
Input luminous flux: 2000 lm
Output luminous flux: White Fabric < 45% than the luminous flux input + x% according to the type of printing

Dimmability
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

Thickness
55 mm | 2.17 in

Weight
16 kg/m² | 3.3 lbs/ft²

Environment of use
Indoor
On request: Damp location (UL Listed)

IP rating
IP40
On request: IP54
Physical info

Materials
Aluminum, Methacrylate, Stretch Fabric, LED

Aluminum finishes
Ox silver/ white/ black
On request: RAL/ NCS/ Pantone

Diffuser finishes
White stretch fabric/ printed stretch fabric
On request: white acoustic stretch fabric/ printed acoustic stretch fabric
Light info

LED type
Nichia 757 (CRI: Ra min 90 – R9 min 50)
On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

LED lifespan
L90 > 60.000 hours at 50° Celsius

Blue light risk group (200mm)
EXEMPT UNLIMITED

CCT
2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW

MacAdam
3 Step
