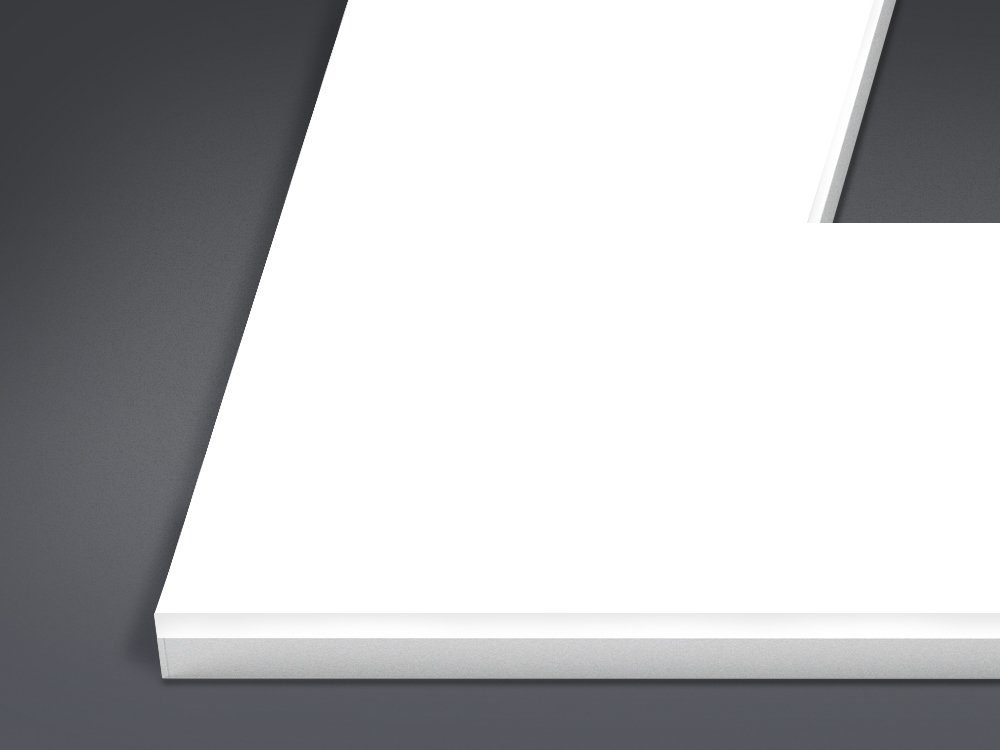

Folio Rigo Rigo Frame 250

Rigo Frame 250 belongs to the Rigo Folio® family and is characterized by a rectangular frame geometry with a defined width of 250 millimeters, minimum dimensions of 550 x 550 millimeters and maximum dimensions of 3000 x 2000 millimeters.
The panel is made to measure and it is possible to customize its size, shape and thickness, as well as make special processing on it.
The product is made up of the external protection in extrus aluminum that favors rigidity and heat dissipation and the internal transparent methacrylate plate ("source") laser processed following the Folio® custom engraving algorithm which allows to obtain a guaranteed light homogeneity of 97%. The opal diffuser with a thickness of 10 millimeters is available with a matte or glossy finish and protects the LED circuit as well as the "source" plate without hindering the light transmission, improving the aesthetics of the panel, both when switched off and on, thanks to the effect "full light" with bright edges. The components are fixed together with micro-screws placed on the rear perimeter of the panel; the tips of the screws are visible on the bright side of the panel.
The Rigo Frame panels can be installed on the wall, on the ceiling, suspended or lay-on installation, keeping intact the lighting qualities and minimal design.
In addition to the finishes of the diffuser and the aluminum body, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Folio® Rigo Frame 250 can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.

Mounting and size
  • Wall

    Wall max size

    250 × 3000 × 2000 mm | 9.84 × 118.11 × 78.74 in
  • Suspended

    Suspended max size

    250 × 3000 × 2000 mm | 9.84 × 118.11 × 78.74 in
  • Ceiling

    Ceiling max size

    250 × 3000 × 2000 mm | 9.84 × 118.11 × 78.74 in
  • Flat

    Flat max size

    250 × 3000 × 2000 mm | 9.84 × 118.11 × 78.74 in

  • LED input
    24V DC

    Static CCT
    Consumption: 22 W/m
    Input luminous flux: 2000 lm
    Output luminous flux: 682 lm/ft (flux with two LED sides)

    Dimmability
    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    Thickness
    24 mm | 0.95 in

    Weight
    21 kg/m² | 4.3 lbs/ft²

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40
    On request: IP54

  • Materials
    Aluminum, Methacrylate, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    Matte opal/ glossy opal
    On request: Opal Milling / Opal Sculpture/ printed opal/ opal with printed film

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)
    EXEMPT UNLIMITED

    CCT
    2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
    On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW

    MacAdam
    3 Step

Available processes

Opal drilled circular

Opal drilled square

Available certifications
