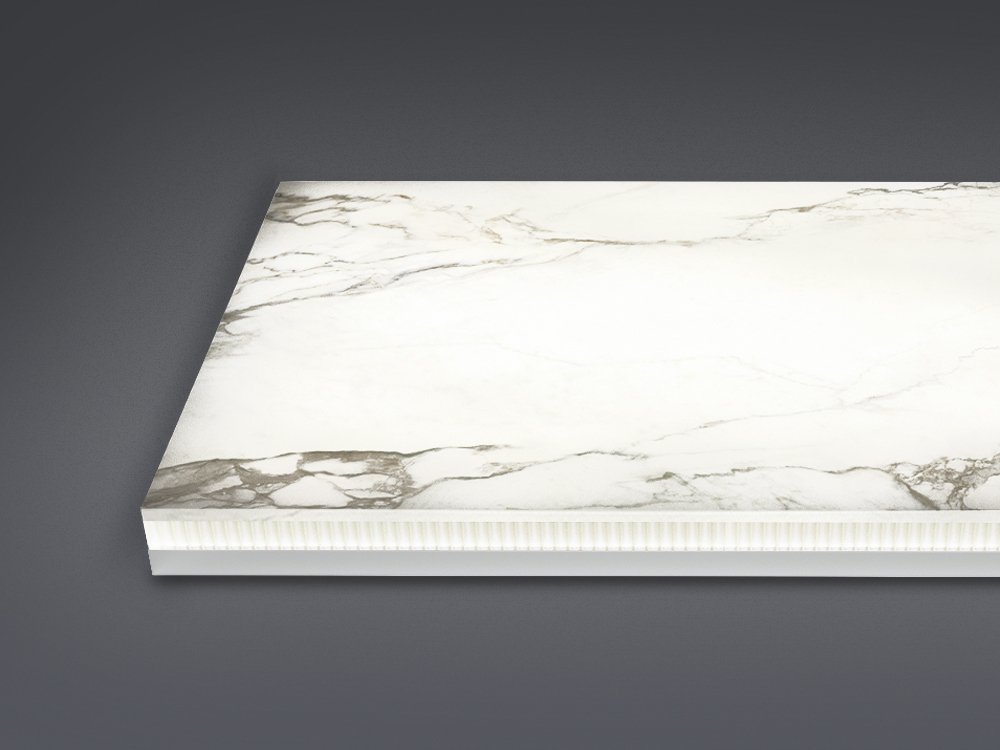

Folio Materials Folio Marble Light

Folio® Marble Light belongs to the Folio® Materials family and is characterized by its reduced thickness and lightened marble diffuser.
The panel is made to measure and it is possible to customize its size, shape, type of marble applied and thickness, as well as make special processing on it.
The product is made up of the external aluminum protective shell that favors rigidity and heat dissipation and the internal transparent methacrylate plate ("source") laser processed following the Folio® custom engraving algorithm which allows to obtain a guaranteed light homogeneity of 97%. The diffuser in marble or onyx is placed on the opal and it protects the LED circuit as well as the "source" plate without hindering light transmission, improving the aesthetics of the panel, both when turned off that lights up, thanks to the material finish and the “full light” effect with bright edges. The components are fixed together with micro-screws placed on the rear perimeter of the panel; the tips of the screws are visible on the bright side of the panel.
The size of the Folio® Marble Light panels changes according to the type of installation required (wall, ceiling, suspended or lay-on installation), up to a maximum of 3000 x 2000 millimeters.
In addition to the finishes of the diffuser and the aluminum body, there are also customizable elements of the product like CCT, consumption, luminous flux, IP rating and position of the LED circuit (on a single side or on multiple sides).
Nichia LEDs used for Folio® products are highly energy efficient (over 100 lumen/ watt) and guarantee a minimum CRI of 90 and a minimum R9 of 50. The light panel is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The diffused light of Folio® Marble Light can be implemented with lighting accessories such as indirect light or Folio Spot.Mate® components for point light.

Mounting and size

Wall max size
3000 × 2000 mm | 118.11 × 78.74 in
Suspended max size
3000 × 1000 mm | 118.11 × 39.37 in
Ceiling max size
3000 × 1000 mm | 118.11 × 39.37 in
Flat max size
3000 × 2000 mm | 118.11 × 78.74 in

General info

LED input
24V DC

Static CCT
Consumption: 22 W/m
Input luminous flux: 2000 lm
Output luminous flux: Folio < 20% than the luminous flux input + Marble < x% according to the type of marble

Dimmability
0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

Thickness
23 mm | 0.90 in

Weight
30 kg/m² | 6.1 lbs/ft²

Environment of use
Indoor
On request: Damp location (UL Listed)

IP rating
IP40
On request: IP54
Physical info

Materials
Aluminum, Methacrylate, Marble, LED

Aluminum finishes
Ox silver/ white/ black
On request: RAL/ NCS/ Pantone

Diffuser finishes
Marble
Light info

LED type
Nichia 757 (CRI: Ra min 90 – R9 min 50)
On request: Nichia Optisolis™ (CRI: Ra = 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

LED lifespan
L90 > 60.000 hours at 50° Celsius

Blue light risk group (200mm)
EXEMPT UNLIMITED

CCT
2700K/ 3000K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K/ custom TW

MacAdam
3 Step
