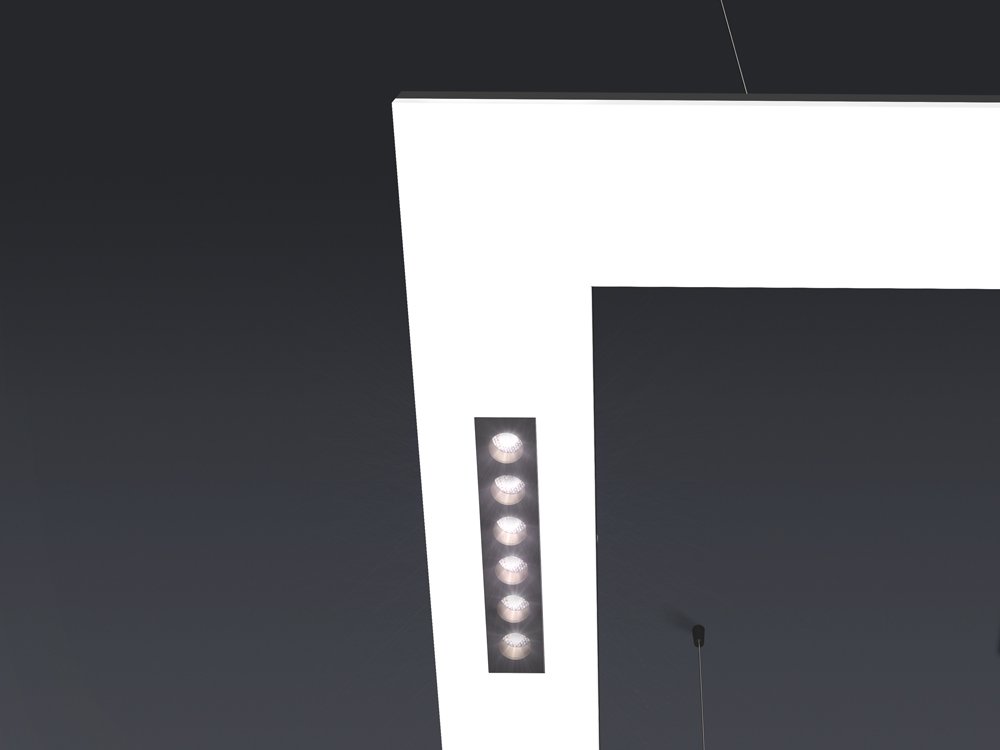

Domino Domino Linear

Domino Linear belongs to the patented Folio Spot.Mate® collection.
The product has a square section (180x35 millimeters) with a black oxidized aluminum heatsink, which can be customized on request. The LED Folio circuit is composed by high efficiency Nichia diodes (over 110 lumen/ watt) with guaranteed minimum CRI of 90 and a guaranteed minimum R9 of 50 and by nine microprismatic optics which guarantee light emission with a glare index less than 19 (UGR<19). Domino Linear is dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
Domino Linear enriches the aesthetics of the main lamp body also thanks to the application of the front aluminum mask, which can be customized in shapes and finishes.
The Folio® Custom lighting bodies can integrate one or more accessories from the Spot.Mate® collection. The integration makes the patented system complete and performing in all its applications and it enhances the combination between diffused light and adjustable point light.

Mounting and size
  • Spot.Mate

    Spot.Mate max size

    180 × 35 mm | 7.09 × 1.38 in

  • LED input
    24V DC

    Static CCT
    Consumption: HE 8.7 W @ 500 mA HO 12.5 W @ 700 mA
    Output luminous flux: 972 lm 1277 lm

    Dimmability
    0-10V/ 1-10V/ DALI/ DMX/ Bluetooth/ PUSH

    Thickness
    38 mm | 1.49 in

    Weight
    0,3 kg | 0.7 lbs

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40

  • Materials
    Aluminum, Lens, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

  • LED type
    Nichia

    LED lifespan
    About 50.000 hours

    CCT
    3000K/ 3500K/ 4000K
    On request: 2700K/ 5000K

    MacAdam
    3 Step

Available certifications
Downloads
