Zero 40 Suspended 1500x2500

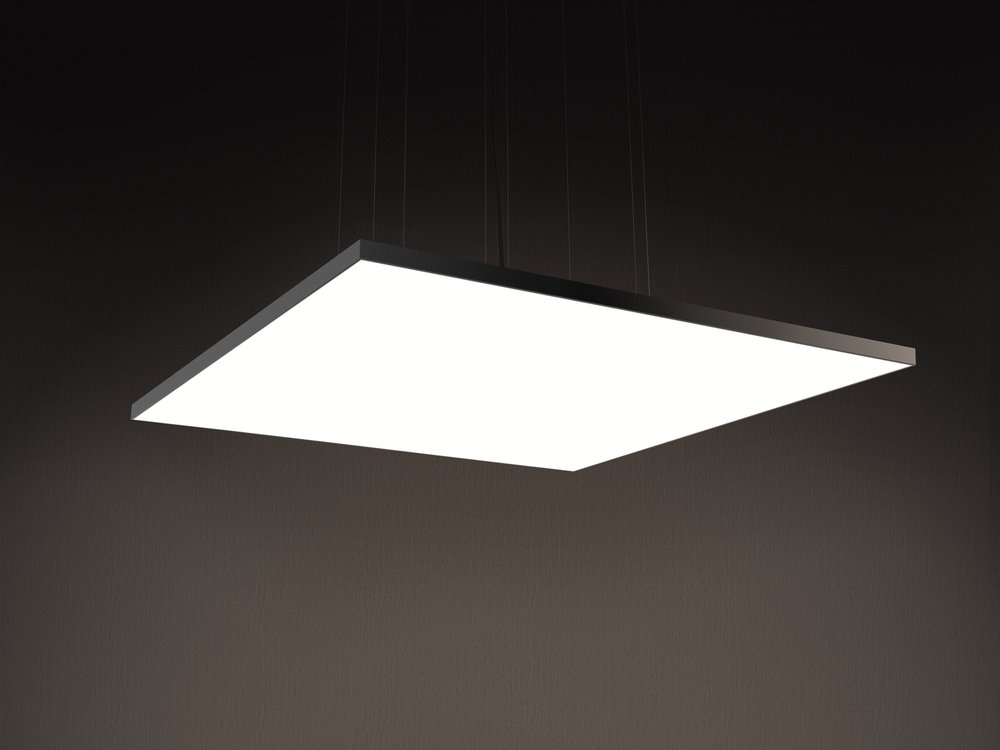

Zero 40 Suspended + FOLIO has a linear geometry with a length of 1500 millimeters and a width of 2500 millimeters and a thickness of 40 millimeters. The Folio® panel is integrated to ensure perfectly uniform lighting. The perimeter aluminum profile allows the stretch fabric, available in white, printed or with acoustic properties, to remain in tension. The aluminum profile is available in black, white, silver or with special finishes on request.
The easily interchangeable diffuser sheet enhances the different areas of application by characterizing the environment. The perimeter seal sewn on the cloth allows a quick replacement of the print without intervening on the aluminum frame.
The lightness and flexibility of the formats allow the coverage of large surfaces.

Mounting and size
  • Suspended

    Suspended

    1500 × 2500 mm | 59.06 × 98.42 in

  • LED input
    24V DC

    Static CCT
    Consumption: P1 125 Watt/ P2 200 Watt
    Output luminous flux: P1 5250 lm/ P2 9450 lm

    Dimmability
    0-10 V, 1-10 V, DALI, DMX, Bluetooth e PUSH

    Thickness
    40 mm | 1.57 in

    Weight
    68 kg | 149.6 lbs

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40
    On request: IP54

  • Materials
    Aluminum, Stretch Fabric, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    White stretch fabric/ printed stretch fabric
    On request: white acoustic stretch fabric/ printed acoustic stretch fabric

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)
    EXEMPT UNLIMITED

    CCT
    2700 K/ 3000 K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
    On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K

    UGR
    < 19

    MacAdam
    3 Step
