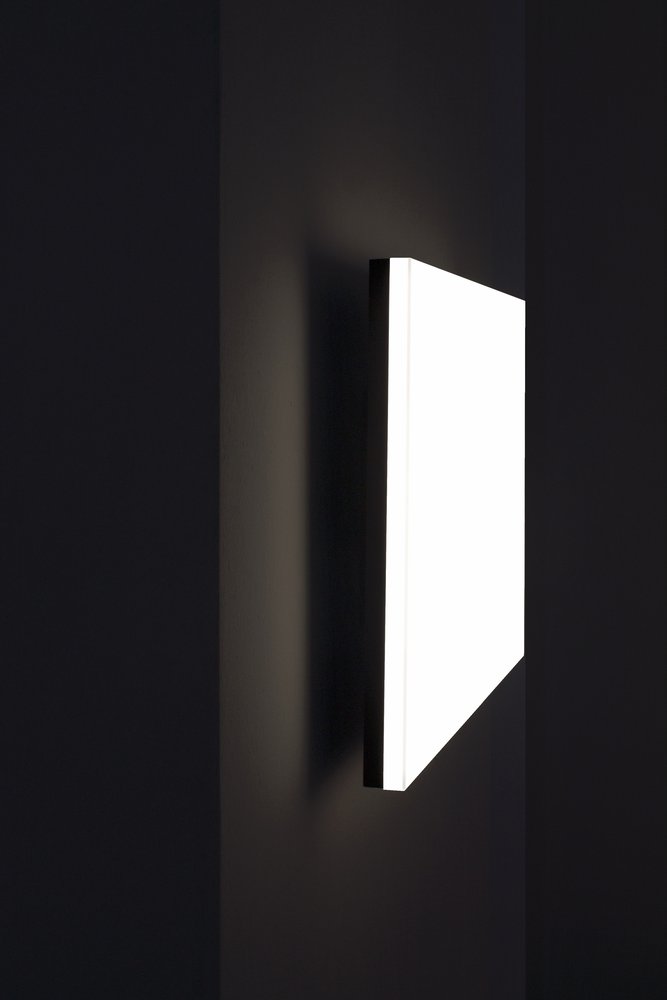

Pixel 200x200

Pixel has a square geometry with a length of 00 millimeters and a width of 200 millimeters.

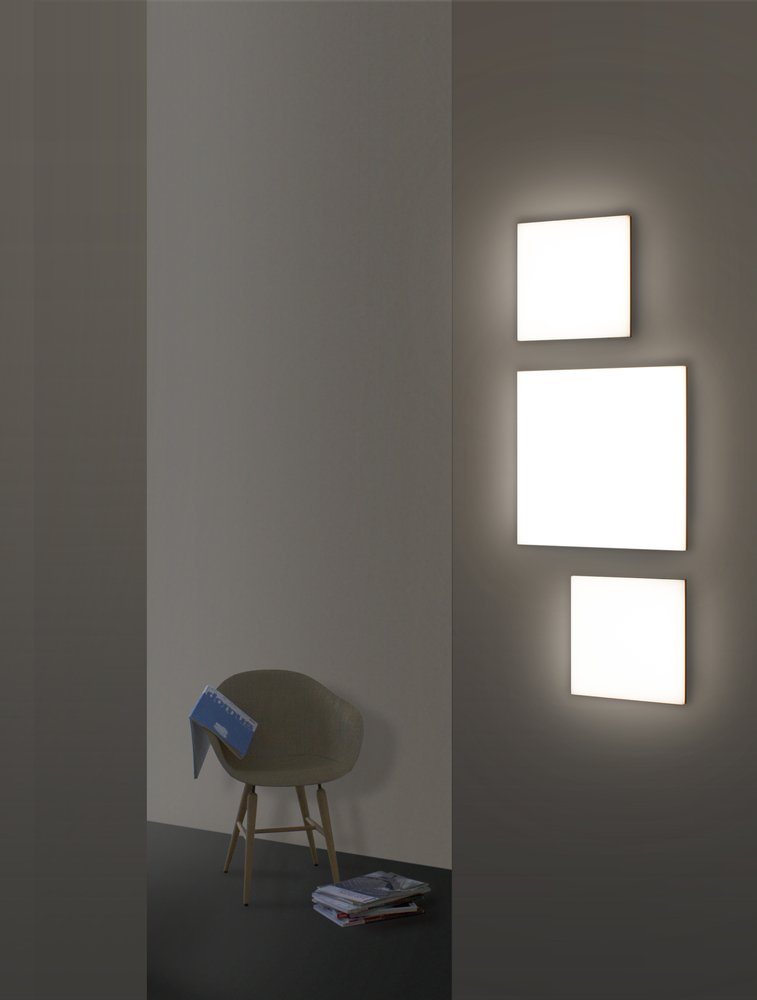

It is ideal for creating various compositions and it is possible to install the product on the ceiling or on the wall.
Light homogeneity is guaranteed by the 10 millimeters thick opal diffuser and the internal methacrylate sheet laser engraved with Folio® Edge Lighting technology.
The external protection with aluminum body promotes rigidity and heat dissipation is available in black, white, silver or with special finishes on request.
Nichia LEDs are energy efficient, dimmable 0-10V, 1-10V, DALI, DMX, Bluetooth and PUSH.
The product is available in versions with remote power supply or with integrated power supply.

Mounting and size
  • Wall

    Wall

    200 × 200 mm | 7.87 × 7.87 in

  • LED input
    24V DC

    Static CCT
    Consumption: L2 9 Watt/ L4 18 Watt
    Output luminous flux: L2 372 lm/ L4 744 lm

    Dimmability
    0-10 V, 1-10 V, DALI, DMX, Bluetooth e PUSH

    Thickness
    39 (24+15) mm | 1.53 (0.94+0.59) in

    Weight
    2 kg | 4.4 lbs

    Environment of use
    Indoor
    On request: Damp location (UL Listed)

    IP rating
    IP40
    On request: IP54/ IP65

  • Materials
    Aluminum, Methacrylate, LED

    Aluminum finishes
    Ox silver/ white/ black
    On request: RAL/ NCS/ Pantone

    Diffuser finishes
    Opal glossy/ opal matte
    On request: milling opal/ sculpture opal/ printed opal/ printed glossy opal (Folio Art)

  • LED type
    Nichia 757 (CRI: Ra min 90 – R9 min 50)
    On request: Nichia Optisolis™ (CRI: 100, full spectrum)/ Nichia Vitasolis™ (spectrum for human activity)

    LED lifespan
    L90 > 60.000 hours at 50° Celsius

    Blue light risk group (200mm)
    EXEMPT UNLIMITED

    CCT
    2700 K/ 3000 K/ 3500K/ 4000K/ 5700K/ Tunable White/ RGB/ RGBW/ RGBTW
    On request: 2000K/ 2200K/ 2500K/ 5000K/ 6500K

    UGR
    < 19

    MacAdam
    3 Step

Available certifications
